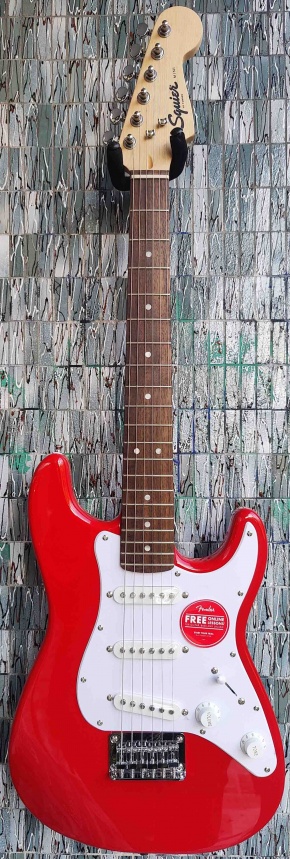

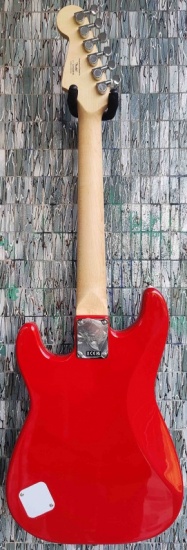

The Squier Mini Stratocaster is the perfect companion for players seeking a reduced-size instrument with classic styling and familiar Fender tone. Highlights include a thin and lightweight body, an easy-to-play "C"-shaped neck profile, a trio of Squier single-coil pickups with 5-way switching for sonic variety, and a hardtail bridge for solid tuning stability.
General
SERIES Mini
ORIENTATION Right-Hand
COLOR Dakota Red
COUNTRY OF ORIGIN ID
PLATFORM Squier Guitars
Neck
NECK MATERIAL Maple
NECK FINISH Satin Urethane
NECK SHAPE "C" Shape
FINGERBOARD RADIUS 9.5" (241 mm)
FINGERBOARD MATERIAL Indian Laurel
POSITION INLAYS Pearloid Dot
NUMBER OF FRETS 20
TRUSS ROD Standard
STRING NUT Synthetic Bone
NUT WIDTH 1.6” (40.6 mm)
NUT MATERIAL Synthetic Bone
Body
BODY Poplar
BODY FINISH Gloss Polyurethane
BODY SHAPE Stratocaster
BODY MATERIAL Poplar
Hardware
BRIDGE 6-Saddle Hardtail
PICKGUARD 1-Ply White
PICKUP COVERS White
CONTROL KNOBS White Plastic
SWITCH TIP White
HARDWARE FINISH Chrome
TUNING MACHINES Standard Die-Cast
STRING TREES Dual-Wing
STRINGS Fender USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
NECK PLATE 4-Bolt Squier
STRAP BUTTONS Standard
Electronics
BRIDGE PICKUP Standard Single-Coil Strat
MIDDLE PICKUP Standard Single-Coil Strat
NECK PICKUP Standard Single-Coil Strat
PICKUP CONFIGURATION SSS
CONTROLS Volume, Tone
SWITCHING 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
Measurements
DIMENSIONS 4.00x14.90x39.80 IN
FRET SIZE Narrow Tall
SCALE LENGTH 22.75” (578 mm)
