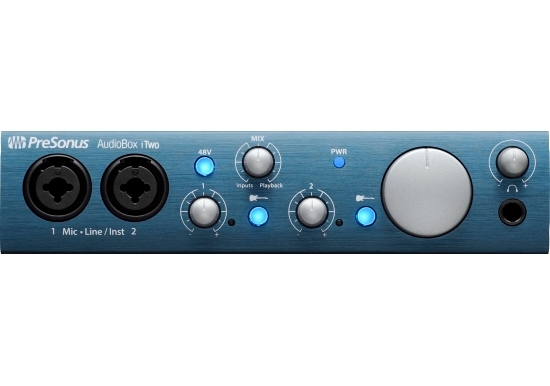

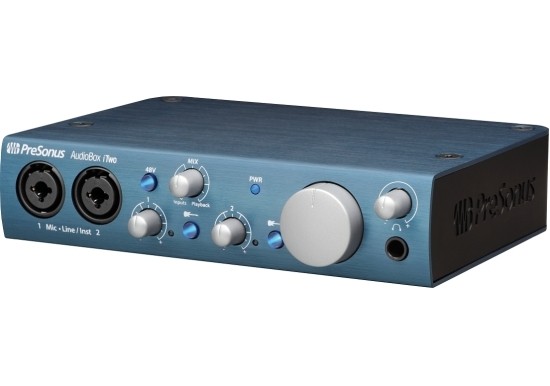

A great choice for mobile musicians, guitarists, sound designers, and podcasters, the AudioBox iTwo audio interface is USB 2.0 bus-powered, compatible with Apple iPad, compact, ruggedly built, and works with virtually any Mac, Windows, or iPad recording software.
It offers 2 combo mic/line/instrument inputs with high-performance Class A mic preamplifiers, 2 balanced ¼” TRS main line-level outputs, professional-quality, 24-bit/96 kHz converters, and MIDI I/O.
It comes with PreSonus’ Studio One Artist DAW software for Mac and Windows and Capture Duo for iPad recording software, with direct wireless transfer of your recordings to Studio One.
Electronics
INPUTS Two - 2 x XLR/TRS Line Combo
HEADPHONE JACK 1/4" TRS Active Stereo

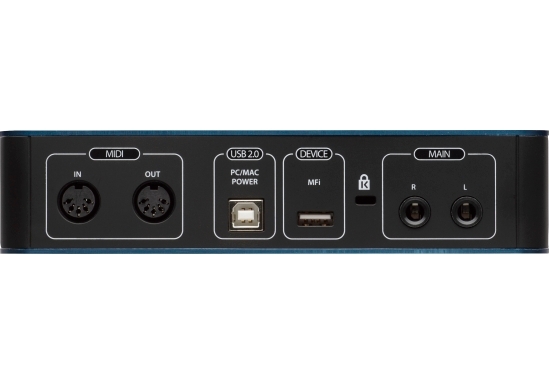

LINE OUT Two - 1/4" Balanced (Left and Right)
CONNECTIVITY USB 2.0
PHANTOM POWER +48 VDC (±2 VDC)
Performance
DIGITAL AUDIO BIT DEPTH 24
DIGITAL AUDIO DYNAMIC RANGE 105 dB (A-Weighted, 48 kHz Sample Rate)
Inputs
LINE INPUTS IMPEDANCE 10 kΩ
MICROPHONE INPUT CONNECTION TYPE XLR Female, Balanced
MICROPHONE PREAMP COMMON MODE REJECTION RATIO (1 kHz, 52 dB Gain)
MICROPHONE PREAMP FREQUENCY RESPONSE 20 Hz to 20 kHz (±3.0 dB)
MICROPHONE PREAMP GAIN CONTROL RANGE 0 dB to 52 dB (±1 dB)
MICROPHONE PREAMP INPUT IMPEDANCE 1200Ω
MICROPHONE PREAMP MAXIMUM INPUT LEVEL +10 dBu (Unity Gain, 1 kHz @ 0.5% THD+N)
MICROPHONE PREAMP SIGNAL TO NOISE RATIO > 95 dB (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz)
MICROPHONE PREAMP TOTAL HARMONIC DISTORTION < 0.008% (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain)
Outputs
HEADPHONE OUTPUTS FREQUENCY RESPONSE 20 Hz - 30 kHz (±1.0 dB)
HEADPHONE OUTPUTS MAXIMUM OUTPUT 60 mW/Channel @ 60Ω Load
LINE OUTPUTS CONNECTION TYPE 1/4" TRS Female
MAIN AND LINE OUTPUTS OUTPUT IMPEDANCE 51Ω
Hardware
MIDI IO Dual 5-Pin Female DIN
