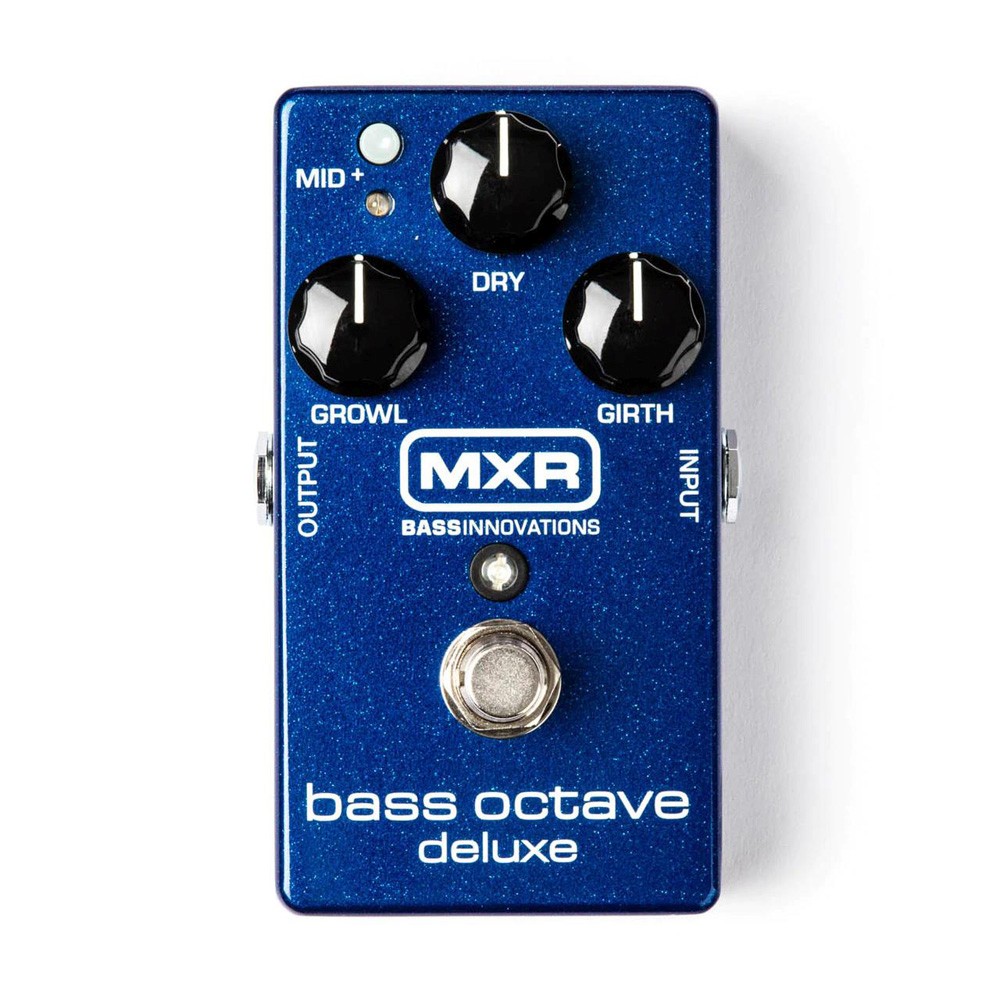

The Bass Octave Deluxe is a dual-voice octave pedal that offers analog tone, true bypass, and a variety of tonal options. MXR's 18 volt Constant Headroom Technology provides high headroom and superior tracking. Use the Dry knob to mix in your direct signal, and hit the Mid+ switch to add up to +14dB of internally adjustable mid frequencies (400Hz or 850Hz). Finally, mix in two separately controlled octave voices-Growl (for throaty tone) and Girth (for deep tone).
Input Impedance 1 M Ohm
Output Impedance <
600 ?
Noise Floor 85 dB
Octave Bandpass
-3 dB, 8 Hz to 46 Hz
Control Range
Dry - to +2.5 dB
Girth -0 to +1 dB
Growl -0 to +6 dB
MID+ Switch**
Gain +4 dB to +14 dB
Frequency 400 Hz or 850 Hz
Bypass True Hardwire
Current Draw 14 mA
Power Supply 9 volts DC
