Tone Master Pro is the first no-compromise multi-effects guitar workstation that features the amazing sound quality that the Tone Master series is known for. Combining a powerfully intuitive interface and the most comprehensive I/O array available, the Tone Master Pro is the best sounding, most powerful and easiest to use guitar processor ever.
Tone Master Pro features over 100 of the world's most popular amps and effects, including all of the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other can't live without classics that have all been perfectly replicated using our proprietary Tone Master Modeling process. Tone Master Pro's lightweight, rugged, stage-friendly form factor is as beautiful as it is functional. With a full-color touchscreen, stunning graphics, and intuitive user interface, dialing in the perfect tone has never been easier or more inspired.

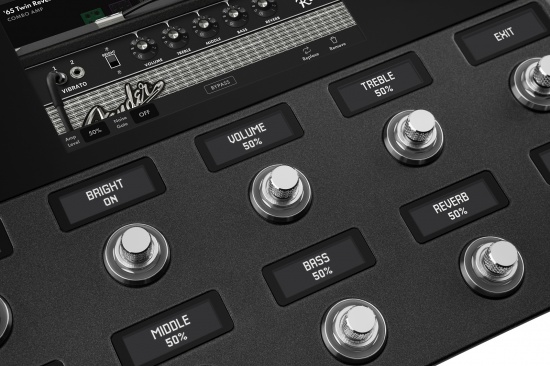

Create Presets, customize your footswitch assignments and combine them to create Songs and organize into Setlists with ease. Tone Master Pro's 10 custom-designed footswitch encoders make editing a breeze, giving you instant access to all your presets and parameters and make adjustments just like you would on the real thing. Connect to our Tone Master Pro Control app via USB for creating, editing and sharing your own presets or for auditioning and downloading thousands of tones created by Fender's community of players and artists.
General
SERIES Tone Master
COLOR Black
COUNTRY OF ORIGIN CN
Performance
DIGITAL AUDIO BIT DEPTH 32 Bit
Inputs
AUXILIARY INPUT CONNECTION TYPE 3.5 mm Stereo
AUXILIARY INPUT IMPEDANCE 10 kΩ
INSTRUMENT INPUT CONNECTION TYPE 1/4"
INSTRUMENT INPUTS MAXIMUM LEVEL 5.6V (2.8V with Input Pad Off)
LINE INPUT CONNECTION TYPE 1/4” TRS Female (Combo), Balanced
LINE INPUTS IMPEDANCE 1MΩ
LINE INPUTS MAXIMUM LEVEL 7.8V Balanced, 4.5V Unbalanced
MICROPHONE INPUT CONNECTION TYPE XLR Female (Combo), Balanced
MICROPHONE PREAMP INPUT IMPEDANCE 1.8 kΩ Balanced
MICROPHONE PREAMP MAXIMUM INPUT LEVEL 4.7V
AUXILIARY INPUT MAX INPUT LEVEL 2.4V
EFFECTS LOOP IMPEDANCE 10 kΩ
Hardware
MIDI IO Dual 5-Pin DIN (In/Out-Through-Merge)
EFFECTS LOOP CONNECTION TYPE Mono Loops (1 & 2) 1/4" Unbalanced, Mono Loops (3 & 4) 1/4" TRS Balanced (Can Be Combined into Stereo Pair)
Electronics
CONTROL PANEL Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD "Scribble Strips"
EFFECTS Over 100 Quality Amp and Effect Models
EFFECTS LOOP 4 Total
LOOPER 60-Second Stereo Looper
CONNECTIVITY USB-C
CONNECTION TYPE 1/4"
OTHER CONNECTIONS 1/4" Expression Pedal 1 and 2, Amp Control
VOLTAGE 230V UK
POWER REQUIREMENTS 40W
PHANTOM POWER +48 VDC (XLR Only)
DIGITAL AUDIO FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.1/-0.7 dB)
Measurements
DIMENSIONS 9.00x15.50x20.25 IN
PRODUCT DEPTH 10.3" (26.16 cm)
PRODUCT HEIGHT 3.8" (96.4 mm)
PRODUCT WIDTH 14.6" (37.1 cm)
