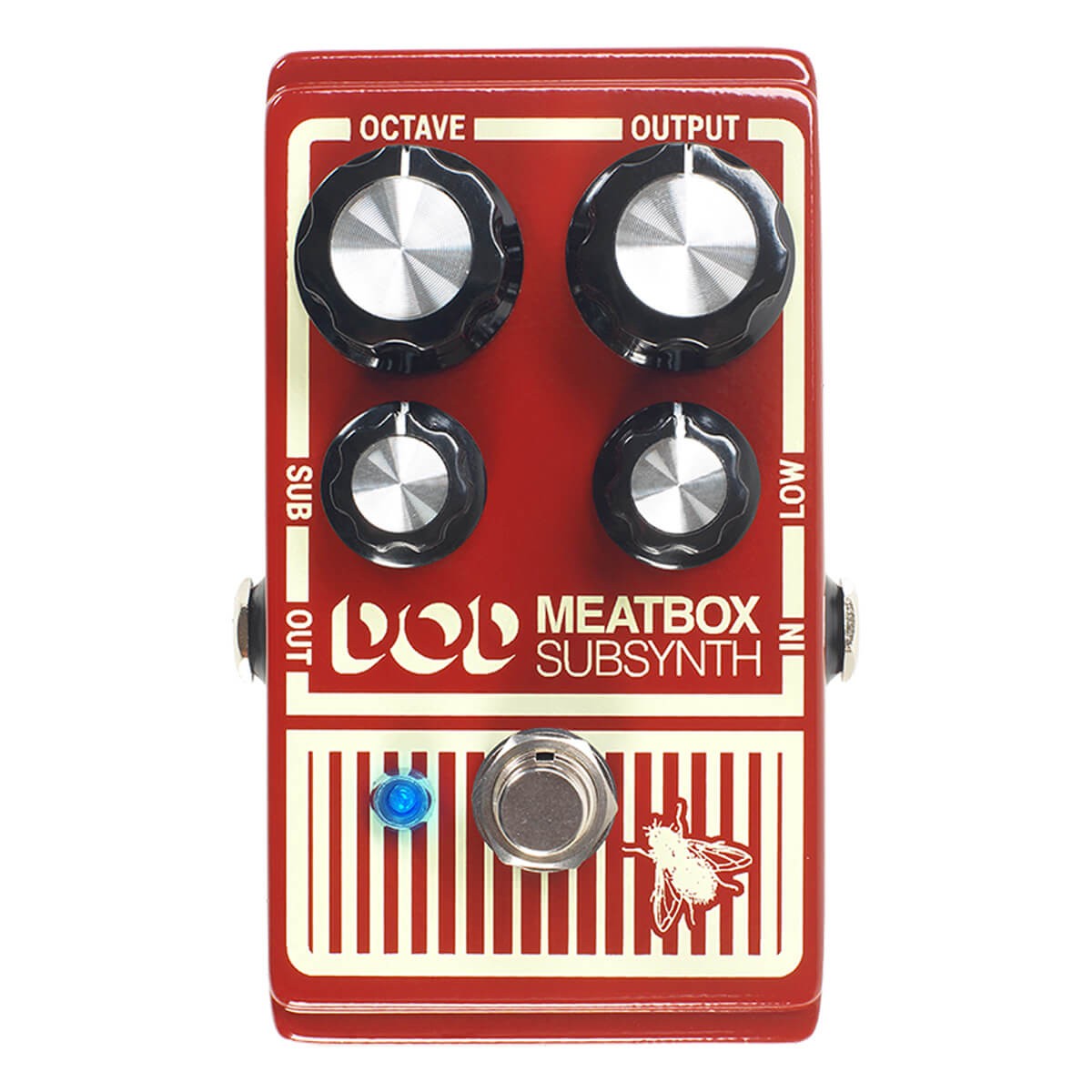

DOD Effects Meatbox Octaver and Subharmonic Synthesizer Pedal

Currently Out of Stock

220996

Based on the iconic DOD Meatbox circuit design with updated components
OCTAVE CONTROL Used to increase/decrease the amount of low octave being added to the signal. Turn this clockwise to increase the amount of low octave.
OUTPUT LEVEL CONTROL Used to adjust the output level of your signal (when the e ! ect is on). Turn this clockwise to increase the output level.
SUB CONTROL Used to increase/decrease the amount of Synthesized Subharmonic added to the signal. Turn this clockwise to increase the amount of Synthesized Subharmonic.
LOW CONTROL Used to increase/decrease the low frequency content of the output, this keeps the extreme lows from overwhelming your amp and speakers.
LED POWER INDICATOR This lights up when the pedal is on.
FOOTSWITCH Press to turn the effect on or off.
OUTPUT CONNECTOR Connect this to the input of your amplifier and/or other effects. This output allows you to route and dry, unaffected signal (Ring) and affected signal (Tip) to your amplifier and other effects simultaneously via a TRS “Y” cable. Tip = Octave+Sub, Ring = Dry, Sleeve = Ground
INPUT CONNECTOR Connect your instrument or the output of another effect pedal to this input connector.

Product Description

Answering the call of low frequency freaks everywhere, the DOD Meatbox is an updated take on the cult favorite Meatbox from the ‘90s. More than just an octaver, the Meatbox is a thick-cut subharmonic synthesizer as well. Adding in sub notes so low that you need to be careful not to blow your speakers. A TRS out allows you to split the subharmonic synthesized signal out to the P.A. for teeth-rattling, bone wrenching, bowel-shaking, booty-quaking bass that will rock the house, literally.

Specification

Input 1/4” TS Unbalanced - 470 kΩ

Output 1/4” TRS Unbalanced - 100 Ω

Current Draw 20 mA

Bypass True Bypass

Power 9VDC alkaline battery (not included) / PS0913DC power adapter (optional)

Warranty 1 Year

More Info

Model

DOD-MEATBOX

Part Number

DOD-MEATBOX
